Your home has two kinds of drain pipe working together: one main line carrying everything to the sewer or septic tank, and several smaller branch lines feeding it from individual fixtures. If a backup shows up in just one sink or tub, it’s almost always a branch line problem. If multiple fixtures back up at once, or water shows up in the lowest drain in the house, that points to the main line.
What’s the difference between a main line and a branch line?

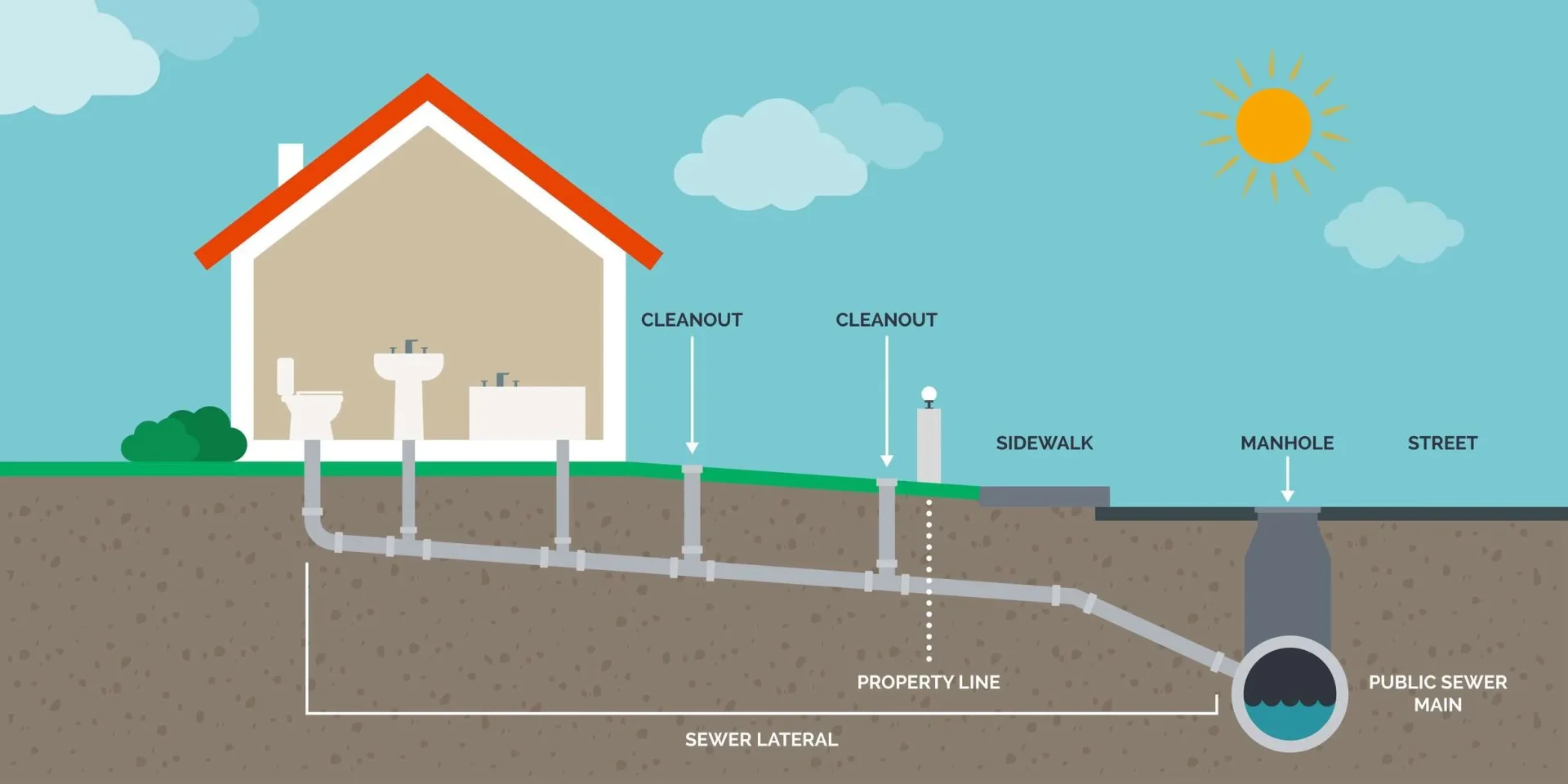

The main sewer line is the single pipe that carries all your household wastewater to the municipal sewer or your septic tank. It’s the busiest pipe in the system by volume, and every fixture in the house eventually feeds into it.
Branch lines are the smaller pipes connecting individual fixtures — a sink, a shower, a washing machine — to that main line. Each fixture has its own branch, and they merge together as they get closer to the main line, similar to smaller streets feeding onto a highway.
Why the size difference matters
Main lines run 4 to 6 inches in diameter to handle combined flow from the whole house. Branch lines are usually 1.5 to 2 inches — sink, tub, and laundry branches tend to run 1.5 inches, toilet branches closer to 2 inches. That size gap is also why a clog in a branch line usually stays contained to one fixture, while a main line clog backs up everything behind it.
What pipe material tells you about age and risk
Cast iron shows up in homes built before the 1960s and holds up well structurally but corrodes from the inside over decades, narrowing the pipe with rust scale. PVC is the modern standard for both main and branch lines — light, resistant to buildup, and easy to repair. ABS (black plastic) handles drain and vent applications well and tolerates cold better than PVC. PEX shows up on the water supply side more than drains, but you’ll sometimes see it on branch runs in newer construction.
What causes clogs and damage in each type of line?
Main line problems: roots, corrosion, collapse
Tree roots are the single biggest cause of main line blockages — they seek out the moisture inside a sewer pipe and work into any crack or loose joint, especially in older cast iron or clay lines common in San Gabriel Valley neighborhoods with mature trees. Left alone, a root intrusion becomes a full blockage that traps everything behind it.
Corrosion is the other major main line issue, mostly in aging cast iron. As the pipe interior rusts and scales up, the effective diameter shrinks and flow slows everywhere in the house at once. In the worst cases — usually decades of corrosion plus ground movement — a section of pipe collapses entirely. Warning signs include repeated clogs that come back within weeks, sewage smell outdoors, soft or sunken spots in the yard, and gurgling from multiple drains.
Branch line problems: local clogs and leaks
Branch line clogs stay local because the branch only serves one fixture. Hair and soap scum clog bathroom branches; grease and food scraps clog kitchen branches; paper products clog toilet branches. Hard water minerals build up gradually inside any branch line and narrow the pipe over years, which shows up as a sink or tub that drains slower than it used to.
Leaks in branch lines usually show up at joints and connections rather than mid-pipe — look for water stains under a sink, damp spots on a ceiling below a bathroom, or a water bill that jumped without an obvious reason.
How can you tell which line has the problem?
The clearest signal is whether one fixture is affected or several. A single slow-draining sink while everything else works fine is a branch line issue. A toilet that gurgles when the washing machine runs, or a shower that backs up when someone flushes, means the two fixtures share a downstream main line that’s partially blocked.
Floor drains and the lowest fixtures in the house tell you the most during a main line backup, since water finds the lowest point first. Sewage coming up through a floor drain, a laundry standpipe, or a basement fixture is a strong main line signal, not a branch line one.
How a plumber confirms it
A sewer cleanout gives direct access to the main line for both diagnosis and clearing — standing water or sewage at the cleanout confirms a main line clog. Camera inspection is the most precise method: a waterproof camera on a pushrod shows exactly where a clog, root intrusion, or crack sits in the pipe, without any digging. For a homeowner without access to a camera, running water in fixtures on different floors and watching where backup shows up first gives a rough answer before calling a plumber.
What’s the fix for each type of problem?
Branch line clogs close to the fixture often respond to a plunger or a hand-crank drain snake. Main line clogs need more reach and power than a store-bought snake provides — that’s where hydro jetting or motorized rodding comes in, both of which clear roots and buildup along the full length of the pipe rather than just punching a hole through.
For a damaged section of pipe, the choice is between excavation (dig up and replace) and pipe relining (a new liner cured in place inside the old pipe). Relining avoids tearing up the yard and can last decades, but costs more upfront for straightforward, easy-to-access sections. Full replacement makes more sense for a severely collapsed line or one that’s shifted out of alignment.
How do you avoid these problems in the first place?
- Keep grease, wipes, and anything other than toilet paper out of the drains — grease solidifies inside the pipe and traps everything else that follows it.
- Get a camera inspection every couple of years if your home has cast iron or clay pipe and mature trees nearby — catching root intrusion early is far cheaper than clearing a full blockage.
- Plant new trees at least 20 feet from the sewer line, and consider a root barrier for existing trees that are already close.
- If you’re renovating an older home, ask about the condition of the branch and main lines before you finish walls back up — it’s the cheapest time to fix or replace them.
A single slow drain is usually a quick fix. Multiple fixtures backing up together, recurring clogs, or sewage smell outdoors are worth a professional look before they turn into a yard excavation. Call Western Rooter & Plumbing at (626) 448-6455 or schedule online if you’re not sure which line is causing the problem.
